Gladiator NXT EVO Omni Throttle - Left Hand

Gladiator NXT EVO Omni Throttle - Left Hand

Omni Throttles provide 6 degrees of freedom movements, meant specifically for space simulation games. While VKB’s GNX Omni Throttle is based on the Gladiator NXT EVO joystick, it ships with an Omni Throttle Adapter (OTA) instead.

Includes

• 1 SCG GNX 'Space Combat' Grip - Left
• 1 Preinstalled Omni Throttle Adapter (OTA)
• 1 Gladiator NXT EVO Base

Planning on swapping the OTA adapter for a straight grip adapter later? Be sure to include one of our SCG Grip Conversion Kits with your Omni Throttle order.

SCG GNX Premium Grip

• 1 Dual Action Trigger
• 1 Rapid Fire Trigger
• 3 Hat switches with center push (4-way)
• 3 buttons
• 1 Analog mini stick with center push (8-way)
• 1 Lockable Twist (Z-axis) with contactless MaRS sensor
• Programmable red color LED
• Programmable RGB LED
• Set of grip fasteners
• 2 interchangeable palm rests (total 3 palm-size adjustments)
• 1 Extra button module for the C1 position
• 1 Extra hat switch module for the A1 position
• 1 Trigger cover (when not using Rapid Fire Trigger)

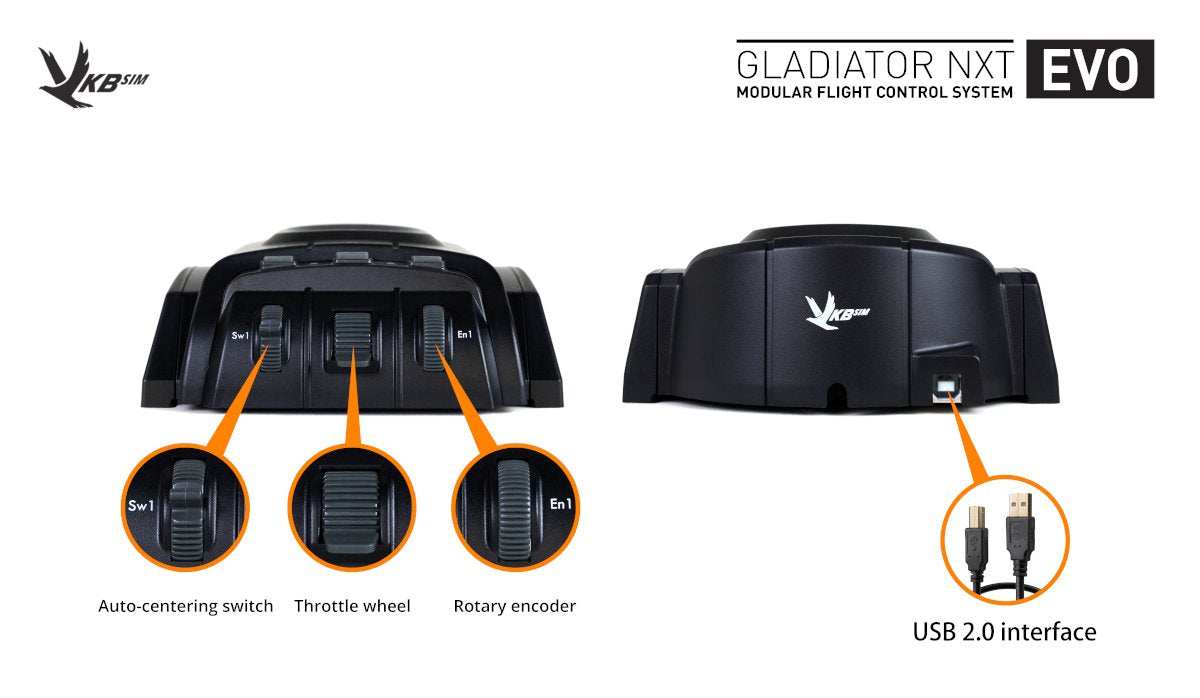

GNX EVO Base

• 2 Contactless MaRS sensors on the X and Y axes
• 1 Auto-centering 3-position switch
• 1 Throttle wheel
• 1 Rotary encoder
• 3 buttons
• Gimbal with ball bearings
• Adjustable dry clutches for user-tunable load
• 2 Programmable single-color LEDs
• Tabletop base steel plate
• Set of soft springs (#10)

• Set of medium springs (#20, default)
• Set of strong springs (#30)

• Spring extractor tool
• Set of screws
• Screwdriver
• USB cable (180cm/70inch)
• Cable holder tool (for UCM Desk Mount)


General Specifications

• Base & Grip made from industrial-grade ABS
• Gimbal made from glass-fiber-reinforced PA
• Tabletop base plate made from steel
• 32-bit ARM Controllers inside the base and grip
• ALPS buttons (Japan OEM) for extended longevity
• Contactless MaRS sensors with High Resolution
• Firmware Upgrade via USB
• Onboard Memory for Storing Profiles

Video Guides

• Gladiator NXT EVO Quick Start Guide
• Gladiator NXT EVO Flashing & Calibrating

• 2 Years
